Java中保持扩展性的几种套路和实现

转载

阿里妹导读

在日常的开发中，作者总结了平常用到的一些低成本、保持扩展性的套路，分享出来，欢迎大家讨论。

前言

SOLID(单一、开闭、里式替换、接口隔离、依赖倒置)五大原则和23种设计模式(常见的单例、构建者、装饰、适配、代理、组合、模板等等)，小伙伴们对这些肯定都很熟悉。这些原则和设计模式能够辅助我们，让我们在设计的时候有所抉择，从而达到高内聚、低耦合的目的。那说到设计，肯定会提到架构两个字，常见的架构名词：分层架构、六边形架构、SOA架构、CQRS架构、EDA架构等等。我个人对架构的理解是边界的确认以及边界内部元素的组合，其实只要是程序员，他就一定是架构师，只不过是好的架构师还是不那么好的架构师；人人都是架构师，我认为这句话是没有问题的，区别在于他的认知决定了他所能确认的边界、如何更高效的组合内部元素；技术的架构师肯定侧重于技术，业务的架构师肯定侧重于业务，商品的架构师所能看到的边界大概率还是局限在商品域，ICBU架构组的架构师更多考虑是横向的业务支撑。以上是我个人对架构两个字的理解，今天我们不讨论具体架构，我们讨论一些套路，在日常的开发中，我总结了些我平常用到的一些低成本、保持扩展性的套路，分享出来，欢迎大家讨论。

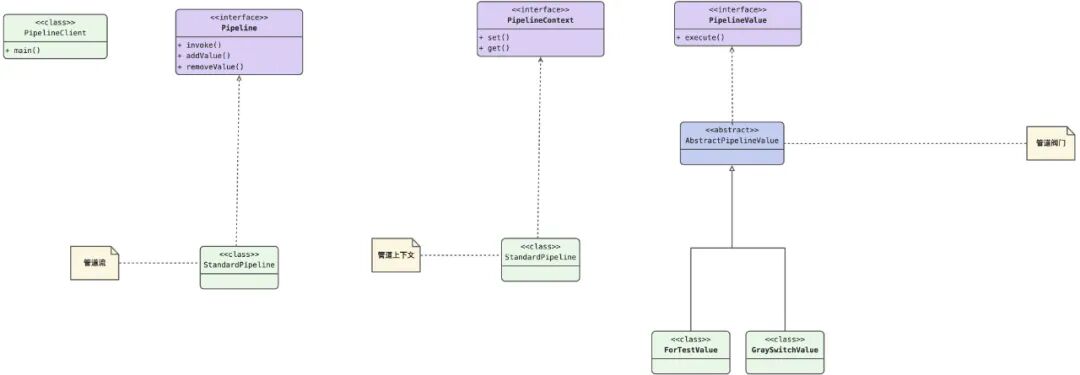

基于管道(pipeline)的套路

关键点

管道(Pipeline)----用于串联阀门的管道通路
阀门(PipelineValue)----用于每一个节点处理实际业务诉求
管道上下文(PipelineContext)----用于管道上下文中数据的扭转

适用场景

当你的数据流需要经过很多同等逻辑处理时，可以考虑使用此套路，便于后续扩展

实现代码

Pipeline/StandardPipeline

package com.example.ownertest.dm.pipelline;
/\*\* \* @Author: linear.zw \* @Date: 2023/10/25 19:46 \*/public interface Pipeline {
 /\*\* \* 执行 \* \* @return \*/ boolean invoke(PipelineContext pipelineContext);
 /\*\* \* 添加值 \* \* @param pipelineValue \* @return \*/ boolean addValue(PipelineValue pipelineValue);
 /\*\* \* 移除值 \* \* @param pipelineValue \* @return \*/ boolean removeValue(PipelineValue pipelineValue);}



package com.example.ownertest.dm.pipelline;
import java.util.List;
import com.google.common.collect.Lists;import lombok.Data;import lombok.extern.slf4j.Slf4j;
/\*\* \* @Author: linear.zw \* @Date: 2023/10/25 19:46 \*/@Data@Slf4jpublic class StandardPipeline implements Pipeline {
 private List<PipelineValue> pipelineValueList = Lists.newArrayList();
 @Override public boolean invoke(PipelineContext pipelineContext) { boolean isResult = true; for (PipelineValue pipelineValue : pipelineValueList) { try { isResult = pipelineValue.execute(pipelineContext); if (!isResult) { log.error("{},exec is wrong", pipelineValue.getClass().getSimpleName()); }
 } catch (Exception e) { log.error(e.getMessage(), e); } }
 return isResult; }
 @Override public boolean addValue(PipelineValue pipelineValue) { if (pipelineValueList.contains(pipelineValue)) { return true; }
 return pipelineValueList.add(pipelineValue); }
 @Override public boolean removeValue(PipelineValue pipelineValue) { return pipelineValueList.remove(pipelineValue); }}

PipelineContext/StandardPipelineContext

package com.example.ownertest.dm.pipelline;
/\*\* \* @Author: linear.zw \* @Date: 2023/10/25 19:47 \*/public interface PipelineContext {
 String FOR\_TEST = "forTest";
 /\*\* \* 设置 \* \* @param contextKey \* @param contextValue \*/ void set(String contextKey, Object contextValue);
 /\*\* \* 获取值 \* \* @param contextKey \* @return \*/ Object get(String contextKey);}



package com.example.ownertest.dm.pipelline;
import java.util.Map;
import com.google.common.collect.Maps;
/\*\* \* @Author: linear.zw \* @Date: 2023/10/25 19:47 \*/public class StandardPipelineContext implements PipelineContext {
 private Map<String, Object> contentMap = Maps.newConcurrentMap();
 @Override public void set(String contextKey, Object contextValue) { contentMap.put(contextKey, contextValue); }
 @Override public Object get(String contextKey) { return contentMap.get(contextKey); }}

PipelineValue/AbstractPipelineValue/GraySwitchValue/ForTestValue

package com.example.ownertest.dm.pipelline;
/\*\* \* @Author: linear.zw \* @Date: 2023/10/25 19:47 \*/public interface PipelineValue {
 /\*\* \* 节点执行 \* \* @param pipelineContext \* @return \*/ boolean execute(PipelineContext pipelineContext);
}


package com.example.ownertest.dm.pipelline;
/\*\* \* @Author: linear.zw \* @Date: 2023/10/25 19:48 \*/public abstract class AbstractPipelineValue implements PipelineValue {
 @Override public boolean execute(PipelineContext pipelineContext) {
 System.out.println(this.getClass().getSimpleName() + " start ");
 boolean result = doExec(pipelineContext);
 System.out.println(this.getClass().getSimpleName() + " end ");
 return result; }
 protected abstract boolean doExec(PipelineContext pipelineContext);}

package com.example.ownertest.dm.pipelline;
/\*\* \* @Author: linear.zw \* @Date: 2023/10/25 19:48 \*/public class GraySwitchValue extends AbstractPipelineValue { @Override public boolean doExec(PipelineContext pipelineContext) {
 pipelineContext.set(PipelineContext.FOR\_TEST, true);
 return true; }}


package com.example.ownertest.dm.pipelline;
/\*\* \* @Author: linear.zw \* @Date: 2023/10/25 19:48 \*/public class ForTestValue extends AbstractPipelineValue { @Override public boolean doExec(PipelineContext pipelineContext) {
 return true; }}

PipelineClient

package com.example.ownertest.dm.pipelline;
/\*\* \* 入口类 \* \* @Author: linear.zw \* @Date: 2023/10/25 19:48 \*/public class PipelineClient {
 public static void main(String[] args) {
 // 管道初始化 Pipeline pipeline = new StandardPipeline();
 // value扩展 PipelineValue pipelineValue = new GraySwitchValue(); PipelineValue pipelineValue2 = new ForTestValue();
 // 上下文 PipelineContext pipelineContext = new StandardPipelineContext();
 pipeline.addValue(pipelineValue); pipeline.addValue(pipelineValue2);
 // 调用管道 pipeline.invoke(pipelineContext);
 }}

常见框架中的应用

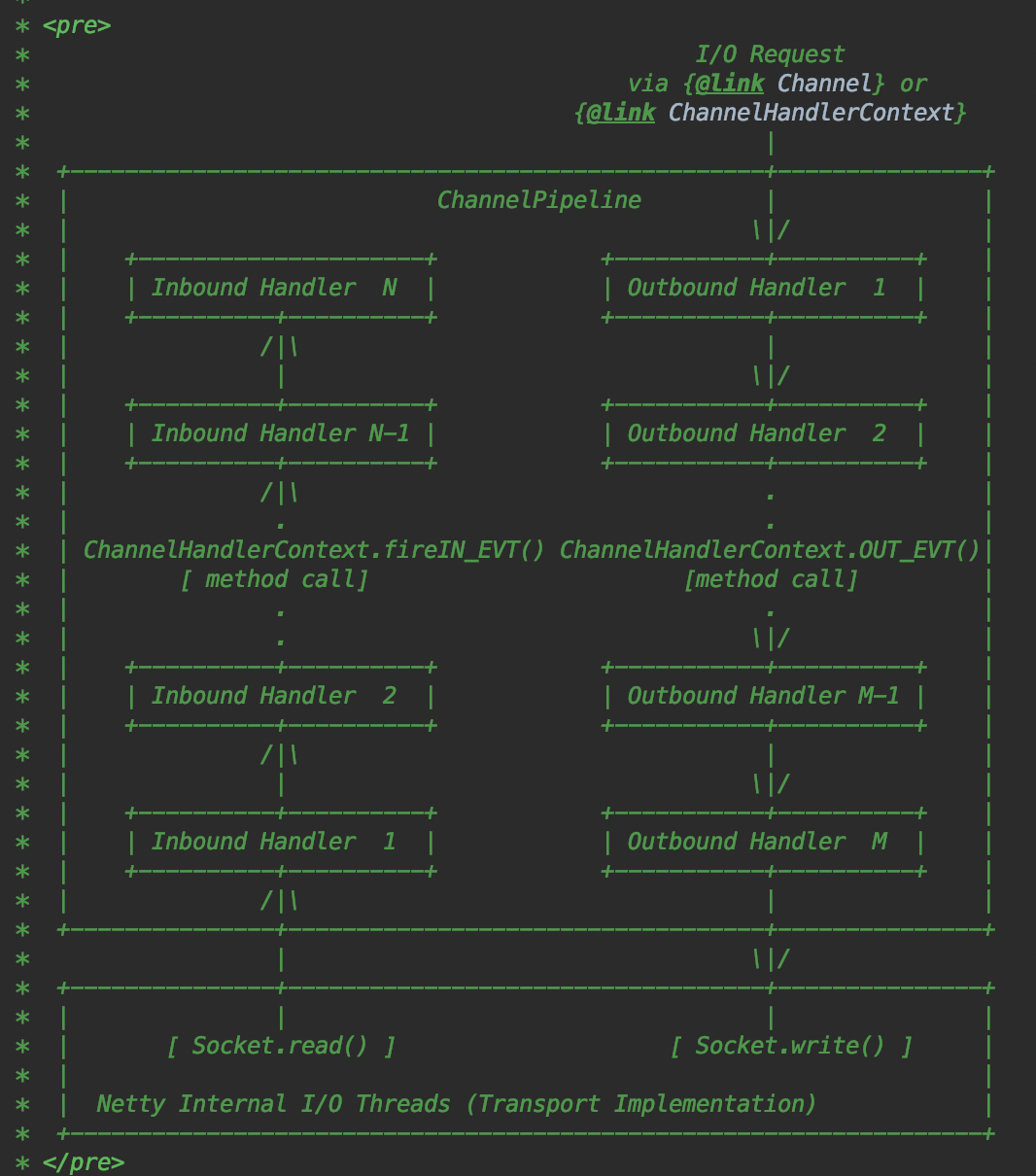

网络层的扛把子netty框架中，例如ChannelPipeline、ChannelHandler、ChannelHandlerContext，分别用于处理tcp拆包、加解码等等之类。

基于责任链(filterchain)的套路

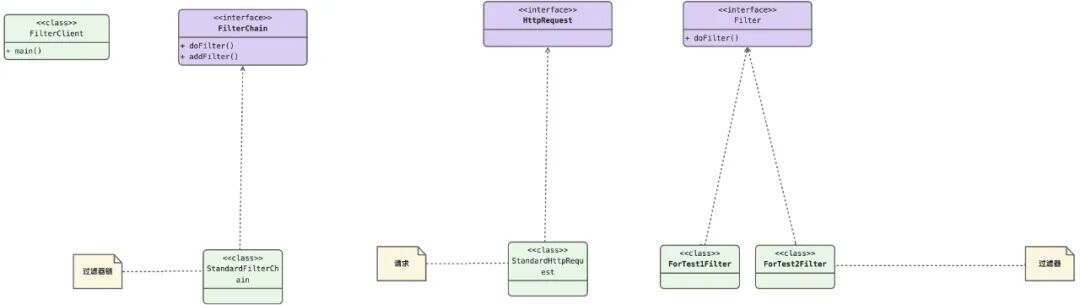

关键点

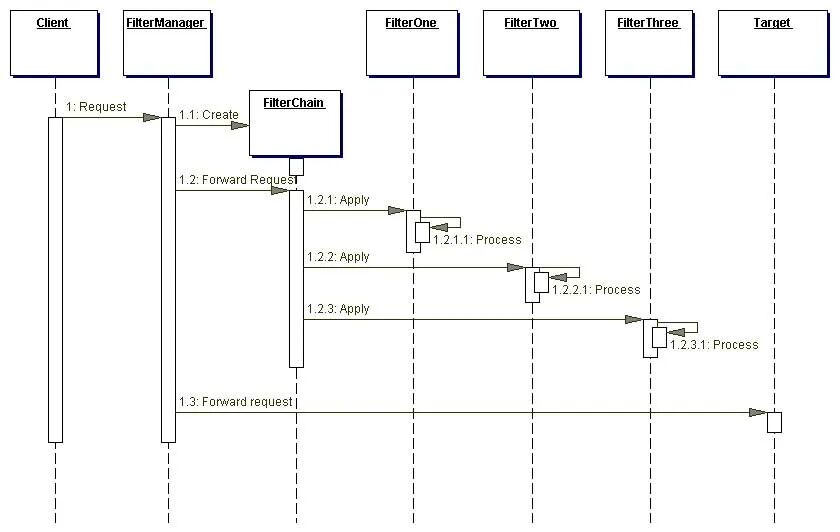

来源--https://www.oracle.com/java/technologies/intercepting-filter.html* 过滤器(Filter)----实际处理业务的节点

过滤链(FilterChain)----串联过滤器的链条

适用场景

例如常见的web请求场景

实现代码

Filter/ForTest1Filter/ForTest2Filter

package com.example.ownertest.dm.filter;
/\*\* \* @Author: linear.zw \* @Date: 2023/10/26 19:22 \*/public interface Filter {
 void doFilter(HttpRequest httpRequest,FilterChain filterChain);}


package com.example.ownertest.dm.filter;
/\*\* \* @Author: linear.zw \* @Date: 2023/10/26 19:22 \*/public class ForTest1Filter implements Filter { @Override public void doFilter(HttpRequest httpRequest, FilterChain filterChain) { // do
 System.out.println(this.getClass().getSimpleName() + " before " + System.currentTimeMillis());
 filterChain.doFilter(httpRequest);
 // after
 System.out.println(this.getClass().getSimpleName() + " end " + System.currentTimeMillis());
 }}




package com.example.ownertest.dm.filter;
/\*\* \* @Author: linear.zw \* @Date: 2023/10/26 19:22 \*/public class ForTest2Filter implements Filter { @Override public void doFilter(HttpRequest httpRequest, FilterChain filterChain) { // do
 System.out.println(this.getClass().getSimpleName() + " before " + System.currentTimeMillis());
 filterChain.doFilter(httpRequest);
 // after
 System.out.println(this.getClass().getSimpleName() + " end " + System.currentTimeMillis()); }}

FilterChain/StandardFilterChain

package com.example.ownertest.dm.filter;
/\*\* \* @Author: linear.zw \* @Date: 2023/10/26 19:23 \*/public interface FilterChain {
 void doFilter(HttpRequest httpRequest);
 void addFilter(Filter filter);}



package com.example.ownertest.dm.filter;
import java.util.List;
import com.google.common.collect.Lists;
/\*\* \* @Author: linear.zw \* @Date: 2023/10/26 19:24 \*/public class StandardFilterChain implements FilterChain {
 private List<Filter> filterList = Lists.newArrayList();
 private int currentIndex = 0;
 @Override public void doFilter(HttpRequest httpRequest) { if (currentIndex == filterList.size()) { return; }
 Filter filter = filterList.get(currentIndex);
 currentIndex = currentIndex + 1;
 filter.doFilter(httpRequest, this); }
 @Override public void addFilter(Filter filter) { if (filterList.contains(filter)) { return; }
 filterList.add(filter); }
}

HttpRequest/StandardHttpRequest

package com.example.ownertest.dm.filter;
/\*\* \* @Author: linear.zw \* @Date: 2023/10/26 19:24 \*/public interface HttpRequest {}



package com.example.ownertest.dm.filter;
/\*\* \* @Author: linear.zw \* @Date: 2023/10/26 19:24 \*/public class StandardHttpRequest implements HttpRequest {}

FilterClient----入口测试

package com.example.ownertest.dm.filter;
/\*\* \* @Author: linear.zw \* @Date: 2023/10/26 19:25 \*/public class FilterClient {
 public static void main(String[] args) { FilterChain filterChain = new StandardFilterChain();
 filterChain.addFilter(new ForTest1Filter()); filterChain.addFilter(new ForTest2Filter());
 filterChain.doFilter(new StandardHttpRequest()); }}

常见框架中的应用

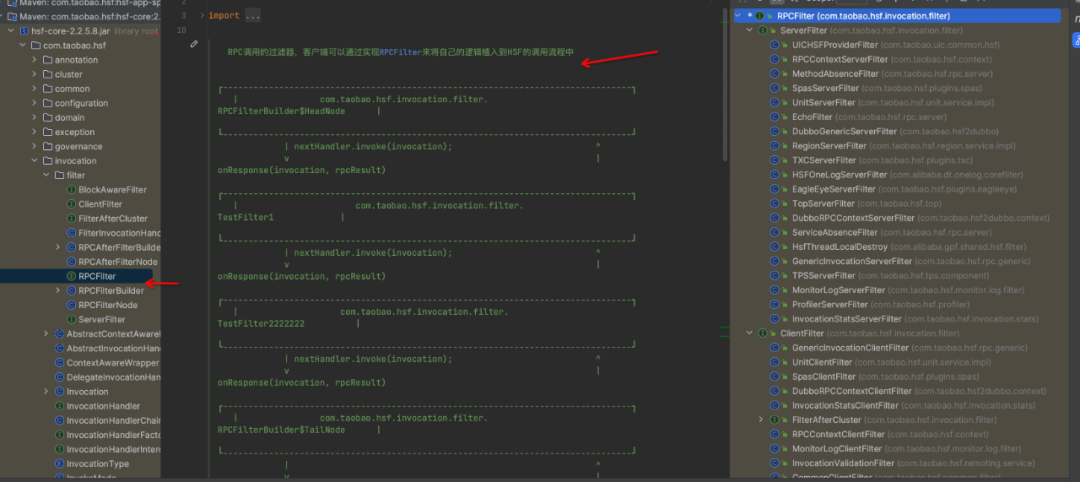

hsf的filter机制，服务端扩展的ServerFilter和客户端扩展的ClientFilter；

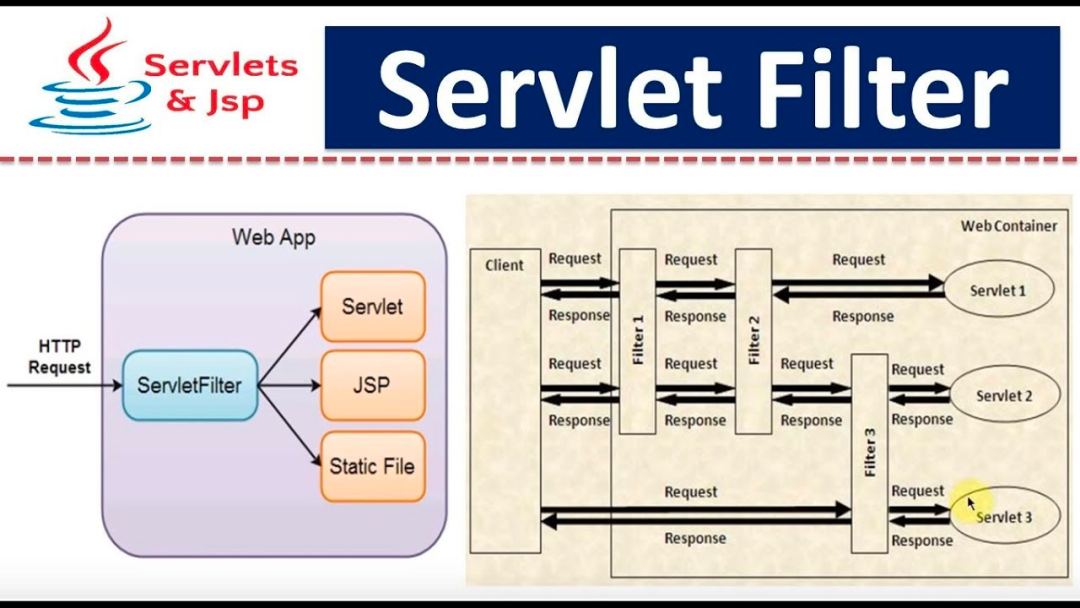

开发过java web的小伙伴都知道的servlet，servlet的入口即是FilterChain、Filter；

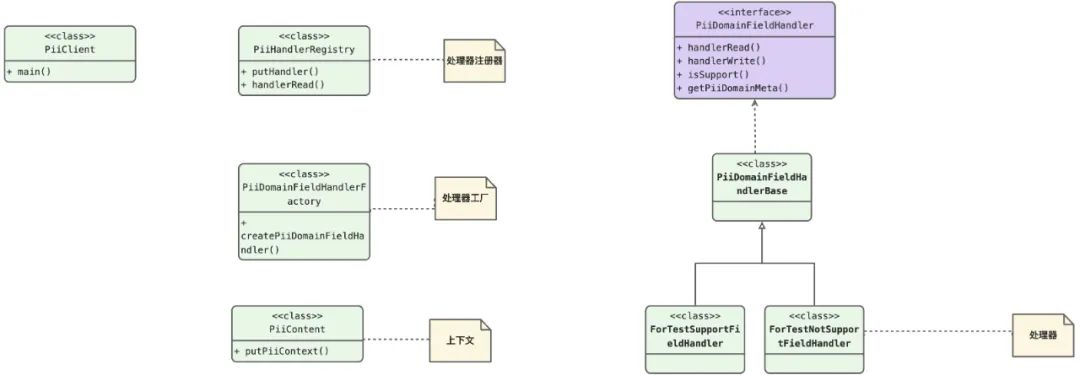

基于组合/模板的套路

关键点

处理器注册器----用于存储处理器的集合
处理器工厂----用于创建处理器
处理器----实际的处理器以及扩展的实现
处理器上下文----处理器上下文，用于参数的传递

适用场景

适合于有共性、后续持续扩展的场景

实现代码

PiiHandlerRegistry----处理器注册器

package com.example.ownertest.dm.comp;
import java.lang.reflect.Field;import java.util.List;import java.util.Map;
import com.google.common.collect.Maps;import lombok.extern.slf4j.Slf4j;import org.apache.commons.collections4.CollectionUtils;import org.apache.commons.lang3.StringUtils;
/\*\* \* @Author: linear.zw \* @Date: 2023/10/31 20:45 \*/@Slf4jpublic class PiiHandlerRegistry {
 private static Map<String, PiiDomainFieldHandler> piiDomainFieldHandlerMap = Maps.newHashMap();
 public static void putHandler(String piiDomainFieldName, PiiDomainFieldHandler piiDomainFieldHandler) { if (StringUtils.isEmpty(piiDomainFieldName)) { log.warn(" piiDomainFieldName is null,continue"); return; }
 if (piiDomainFieldHandler == null) { log.warn(piiDomainFieldName + " piiDomainFieldHandler is null,continue"); return; }
 if (!piiDomainFieldHandlerMap.containsKey(piiDomainFieldName)) { piiDomainFieldHandlerMap.put(piiDomainFieldName, piiDomainFieldHandler); } }
 public static <T extends Object> int handlerRead(T domain, Field domainField, PiiContent piiContent) { int num = 0; for (Map.Entry<String, PiiDomainFieldHandler> piiDomainFieldHandlerEntry : piiDomainFieldHandlerMap.entrySet()) { if (piiDomainFieldHandlerEntry.getValue().isSupport(domain, domainField)) { piiDomainFieldHandlerEntry.getValue().handlerRead(domain, domainField, piiContent); } } return num; }
 public static <T extends Object> int handlerWrite(T domain, Field domainField, PiiContent piiContent) { int num = 0; for (Map.Entry<String, PiiDomainFieldHandler> piiDomainFieldHandlerEntry : piiDomainFieldHandlerMap.entrySet()) { if (piiDomainFieldHandlerEntry.getValue().isSupport(domain, domainField)) { piiDomainFieldHandlerEntry.getValue().handlerWrite(domain, domainField, piiContent); } } return num; }
 public static Map<String, PiiDomainFieldHandler> getPiiDomainFieldHandlerMap() { return piiDomainFieldHandlerMap; }
 public static void init() { List<PiiDomainFieldHandler> piiDomainFieldHandlerList = PiiDomainFieldHandlerFactory .createPiiDomainFieldHandler(); if (CollectionUtils.isNotEmpty(piiDomainFieldHandlerList)) {
 for (PiiDomainFieldHandler piiDomainFieldHandler : piiDomainFieldHandlerList) { putHandler(piiDomainFieldHandler.getPiiDomainMeta(), piiDomainFieldHandler); } } }}

PiiDomainFieldHandlerFactory----处理器工厂

package com.example.ownertest.dm.comp;
import java.util.List;
import com.google.common.collect.Lists;
/\*\* \* @Author: linear.zw \* @Date: 2023/10/31 20:46 \*/public class PiiDomainFieldHandlerFactory {
 /\*\* \* 创建领域处理器 \* \* @return \*/ public static List<PiiDomainFieldHandler> createPiiDomainFieldHandler() { List<PiiDomainFieldHandler> piiDomainFieldHandlerList = Lists.newArrayList();
 // piiDomainFieldHandlerList.add(new ForTestSupportFieldHandler()); piiDomainFieldHandlerList.add(new ForTestNotSupportFieldHandler());
 return piiDomainFieldHandlerList; }}

PiiDomainFieldHandler/PiiDomainFieldHandlerBase/ForTestNotSupportFieldHandler/ForTestSupportFieldHandler----处理器

package com.example.ownertest.dm.comp;
import java.lang.reflect.Field;
/\*\* \* @Author: linear.zw \* @Date: 2023/10/31 20:46 \*/public interface PiiDomainFieldHandler {
 /\*\* \* 处理实际操作 \* 读----从PiiContent获取数据回填domain \* \* @param domain \* @param domainField \* @param piiContent \* @param <T> \* @return \*/ <T extends Object> boolean handlerRead(T domain, Field domainField, PiiContent piiContent);
 /\*\* \* 处理实际操作 \* 写----将domain中需要写入pii的字段数据写入PiiContent \* \* @param domain \* @param domainField \* @param piiContent \* @param <T> \* @return \*/ <T extends Object> boolean handlerWrite(T domain, Field domainField, PiiContent piiContent);
 /\*\* \* 当前处理器是否支持该领域对象 \* \* @param domain \* @param domainField \* @param <T> \* @return \*/ <T extends Object> boolean isSupport(T domain, Field domainField);
 /\*\* \* 获取处理器对应的元信息 \* \* @return \*/ String getPiiDomainMeta();}



package com.example.ownertest.dm.comp;
import java.lang.reflect.Field;
import lombok.extern.slf4j.Slf4j;
/\*\* \* @Author: linear.zw \* @Date: 2023/10/31 20:47 \*/@Slf4jpublic abstract class PiiDomainFieldHandlerBase implements PiiDomainFieldHandler {
 @Override public <T extends Object> boolean handlerRead(T domain, Field domainField, PiiContent piiContent) { // to do business read
 return true; }
 @Override public <T extends Object> boolean handlerWrite(T domain, Field domainField, PiiContent piiContent) {
 // to do business write
 return true; }}



package com.example.ownertest.dm.comp;
import java.lang.reflect.Field;
/\*\* \* @Author: linear.zw \* @Date: 2023/10/31 20:47 \*/public class ForTestSupportFieldHandler extends PiiDomainFieldHandlerBase { @Override public <T> boolean isSupport(T domain, Field domainField) {
 if (this.getClass().getSimpleName().equalsIgnoreCase(domain.getClass().getSimpleName())) {
 // to do business
 System.out.println(this.getClass().getSimpleName() + " is support, to do some business");
 return true; }
 return false; }
 @Override public String getPiiDomainMeta() { return this.getClass().getSimpleName(); }}


package com.example.ownertest.dm.comp;
import java.lang.reflect.Field;
/\*\* \* @Author: linear.zw \* @Date: 2023/10/31 20:48 \*/public class ForTestNotSupportFieldHandler extends PiiDomainFieldHandlerBase { @Override public <T> boolean isSupport(T domain, Field domainField) {
 if (this.getClass().getSimpleName().equalsIgnoreCase(domain.getClass().getSimpleName())) {
 // to do business
 System.out.println(this.getClass().getSimpleName() + " is support, to do some business");
 return true; }
 return false; }
 @Override public String getPiiDomainMeta() { return this.getClass().getSimpleName(); }}

PiiContent----上下文

package com.example.ownertest.dm.comp;
import java.util.Map;
import com.google.common.collect.Maps;import lombok.Data;
/\*\* \* @Author: linear.zw \* @Date: 2023/10/31 20:48 \*/@Datapublic class PiiContent {
 public static String FORTEST="fortest";
 private Map<String, Object> piiDataMap = Maps.newHashMap();
 private Map<String, Object> piiContextMap = Maps.newHashMap();
 public void putPiiData(String domainFieldName, Object domainFieldValue) { piiDataMap.put(domainFieldName, domainFieldValue); }
 public Object getPiiData(String domainFieldName) { return piiDataMap.get(domainFieldName); }
 public void putPiiContext(String contextName, Object contextNameValue) { piiContextMap.put(contextName, contextNameValue); }
 public Object getPiiContext(String contextName) { return piiContextMap.get(contextName); }}

PiiClient----入口的测试类

package com.example.ownertest.dm.comp;
import java.util.Map;
/\*\* \* @Author: linear.zw \* @Date: 2023/10/31 20:48 \*/public class PiiClient {
 public static void main(String[] args) { PiiHandlerRegistry.init();
 // 遍历处理器 for (Map.Entry<String, PiiDomainFieldHandler> entryHandler : PiiHandlerRegistry.getPiiDomainFieldHandlerMap().entrySet()) { System.out.println(entryHandler.getKey() + "\t" + entryHandler.getValue().getPiiDomainMeta()); }
 // PiiContent piiContent = new PiiContent(); piiContent.putPiiContext(PiiContent.FORTEST, PiiContent.FORTEST);
 // 请求处理 System.out.println("ForTestSupportFieldHandler start"); PiiHandlerRegistry.handlerRead(new ForTestSupportFieldHandler(), null, piiContent); System.out.println("ForTestSupportFieldHandler end");
 // 请求处理 System.out.println("ForTestNotSupportFieldHandler start"); PiiHandlerRegistry.handlerRead(new ForTestNotSupportFieldHandler(), null, piiContent); System.out.println("ForTestNotSupportFieldHandler end");
 }}

常见框架中的应用

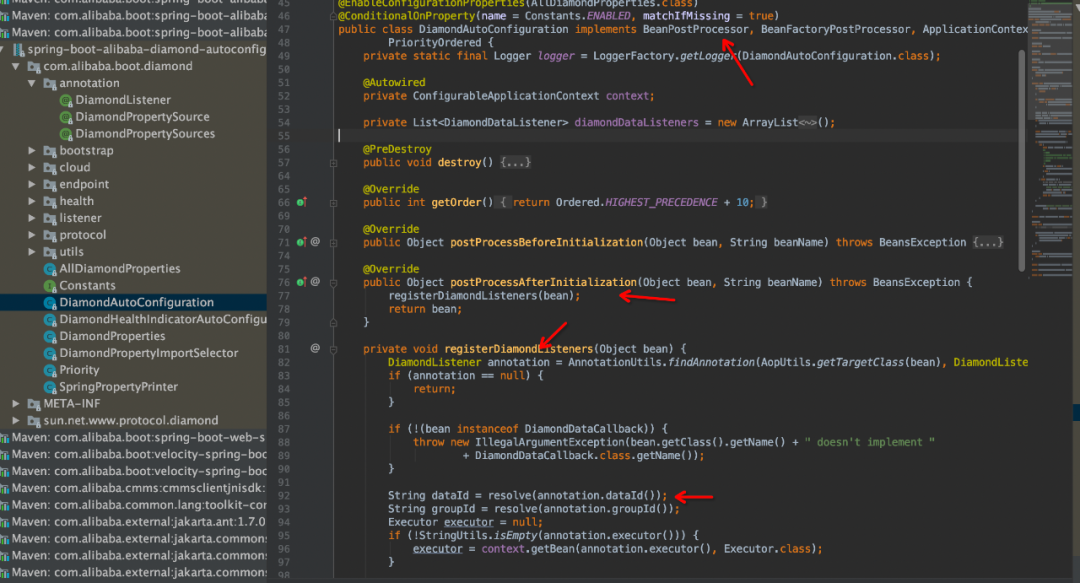

这个就太多了，例如spring最核心的BeanPostProcessor机制，通过org.springframework.beans.factory.support.AbstractBeanFactory#beanPostProcessors管理一些列的beanPostProcessors，在spring上下文org.springframework.context.support.AbstractApplicationContext#refresh的时候，进行bean的init(InitDestroyAnnotationBeanPostProcessor)、解析注解(ScheduledAnnotationBeanPostProcessor、AutowiredAnnotationBeanPostProcessor)、解析aop（AnnotationAwareAspectJAutoProxyCreator）等等。

基于注解的套路

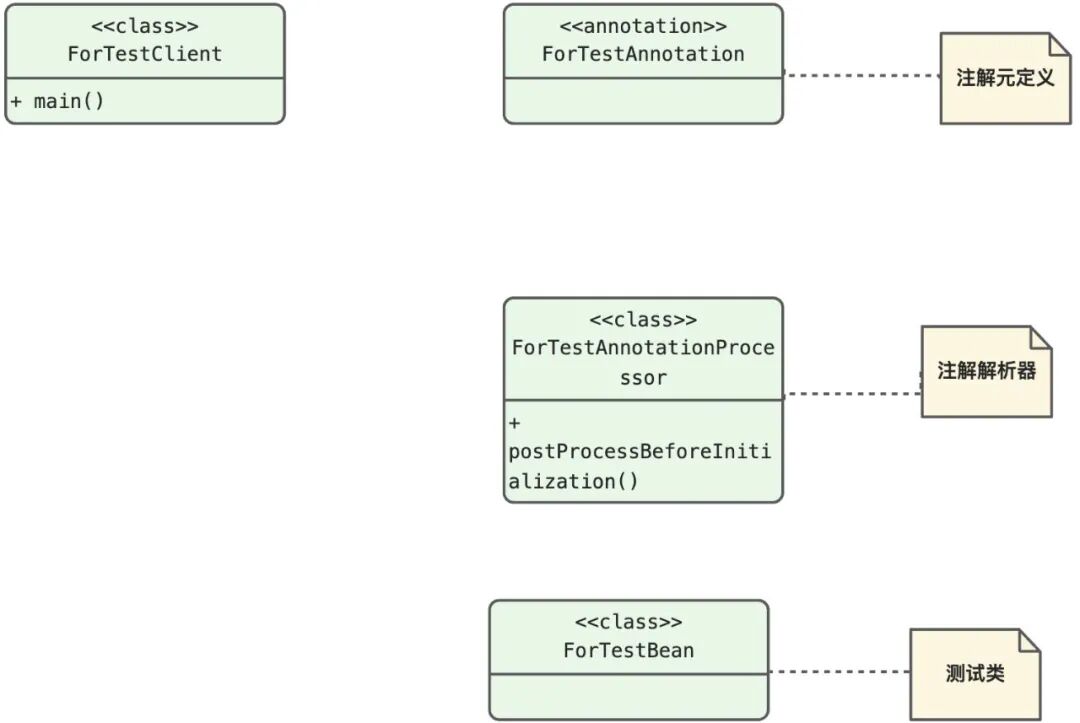

关键点

注解元定义----用来定义通用的元信息；
注解解析器----解析类上是否有指定的注解，进而进行对应的扩展操作；
spring的BeanPostProcessor----这里是借用spring的BeanPostProcessor机制，在spring容器初始化的时候，进行回调，完成预期的扩展行为；

适用场景

简化内部使用

实现代码

ForTestAnnotation----注解元定义

package com.example.ownertest.dm.annotation;
import java.lang.annotation.ElementType;import java.lang.annotation.Retention;import java.lang.annotation.RetentionPolicy;import java.lang.annotation.Target;
import org.springframework.stereotype.Component;
/\*\* \* 用于测试的标识注解 \* \* @Author: linear.zw \* @Date: 2023/11/1 10:21 \*/@Target({ElementType.TYPE, ElementType.METHOD})@Retention(RetentionPolicy.RUNTIME)@Componentpublic @interface ForTestAnnotation {}

ForTestAnnotationProcessor----注解解析器

package com.example.ownertest.dm.annotation;
import org.springframework.aop.support.AopUtils;import org.springframework.beans.BeansException;import org.springframework.beans.factory.config.BeanPostProcessor;import org.springframework.core.annotation.AnnotationUtils;import org.springframework.stereotype.Component;
/\*\* \* 注解解析器 \* @Author: linear.zw \* @Date: 2023/11/1 10:25 \*/@Componentpublic class ForTestAnnotationProcessor implements BeanPostProcessor { @Override public Object postProcessBeforeInitialization(Object bean, String beanName) throws BeansException {
 // 获取目标类是否有ForTestAnnotation注解 ForTestAnnotation annotation = AnnotationUtils.findAnnotation(AopUtils.getTargetClass(bean), ForTestAnnotation.class);
 if (annotation == null) { return bean; }
 // 处理想要的扩展 System.out.println(beanName + " has ForTestAnnotation");
 return bean; }
 @Override public Object postProcessAfterInitialization(Object bean, String beanName) throws BeansException { return bean; }}

ForTestBean----测试bean

package com.example.ownertest.dm.annotation;
/\*\* \* @Author: linear.zw \* @Date: 2023/11/1 10:26 \*/@ForTestAnnotationpublic class ForTestBean {
 public ForTestBean() { System.out.println(ForTestBean.class.getSimpleName() + " init"); }}

ForTestClient---测试入口

package com.example.ownertest.dm.annotation;
import org.springframework.context.annotation.AnnotationConfigApplicationContext;
/\*\* \* @Author: linear.zw \* @Date: 2023/11/1 10:26 \*/public class ForTestClient {
 public static void main(String[] args) { AnnotationConfigApplicationContext applicationContext = new AnnotationConfigApplicationContext( "com.example.ownertest.dm.annotation");
 System.out.println(ForTestClient.class.getSimpleName()); }}

常见框架中的应用

例如集团内部的spring-boot-alibaba-diamond-autoconfigure

基于事件分发的套路

关键点

事件源--事件触发者
事件--标识产生的来源
事件监听器--事件的关注者，即处理者
事件分发器--用于将事件源的事件转发给事件监听器

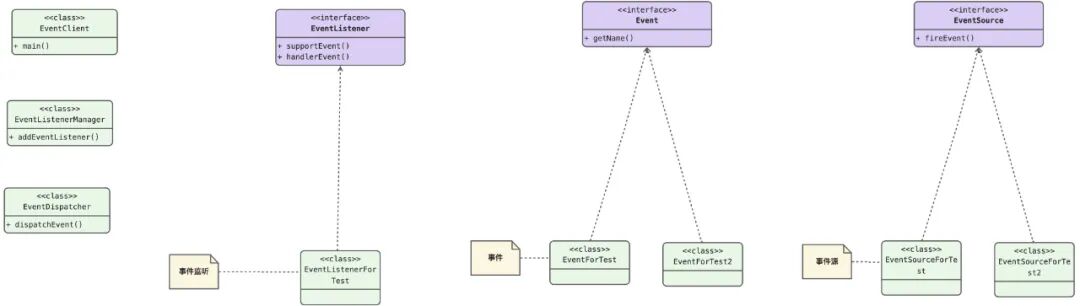

实现代码

EventSource/EventSourceForTest/EventSourceForTest2

package com.example.ownertest.dm.event;
/\*\* \* 发出事件 \* @Author: linear.zw \* @Date: 2023/11/1 14:12 \*/public interface EventSource {
 /\*\* \* 发出事件 \* \* @return \*/ Event fireEvent();}




package com.example.ownertest.dm.event;
/\*\* \* @Author: linear.zw \* @Date: 2023/11/1 14:14 \*/public class EventSourceForTest implements EventSource { @Override public Event fireEvent() {
 Event event = new EventForTest(); System.out.println(getClass().getSimpleName() + " \t fireEvent " + event.getName());
 return event; }}




package com.example.ownertest.dm.event;
/\*\* \* @Author: linear.zw \* @Date: 2023/11/1 14:15 \*/public class EventSourceForTest2 implements EventSource { @Override public Event fireEvent() {
 Event event = new EventForTest2(); System.out.println(getClass().getSimpleName() + " \t fireEvent " + event.getName());
 return event; }}

Event/EventForTest/EventForTest2

package com.example.ownertest.dm.event;
/\*\* \* @Author: linear.zw \* @Date: 2023/11/1 14:15 \*/public interface Event {
 /\*\* \* 事件名称 \* \* @return \*/ String getName();}



package com.example.ownertest.dm.event;
/\*\* \* @Author: linear.zw \* @Date: 2023/11/1 14:17 \*/public class EventForTest implements Event { @Override public String getName() { return getClass().getSimpleName(); }}



package com.example.ownertest.dm.event;
/\*\* \* @Author: linear.zw \* @Date: 2023/11/1 14:17 \*/public class EventForTest2 implements Event { @Override public String getName() { return getClass().getSimpleName(); }}

EventListener/EventListenerForTest

package com.example.ownertest.dm.event;
/\*\* \* @Author: linear.zw \* @Date: 2023/11/1 14:17 \*/public interface EventListener {
 /\*\* \* 是否支持此事件 \* \* @param event \* @return \*/ boolean supportEvent(Event event);
 /\*\* \* 处理事件 \* \* @return \*/ boolean handlerEvent(Event event);}




package com.example.ownertest.dm.event;
/\*\* \* @Author: linear.zw \* @Date: 2023/11/1 14:18 \*/public class EventListenerForTest implements EventListener { @Override public boolean supportEvent(Event event) {
 return event.getName().contains("Test"); }
 @Override public boolean handlerEvent(Event event) {
 System.out.println(this.getClass().getSimpleName() + "\t handler " + event.getName());
 return true; }}

EventDispatcher/EventListenerManager

package com.example.ownertest.dm.event;
import org.apache.commons.collections4.CollectionUtils;
/\*\* \* @Author: linear.zw \* @Date: 2023/11/1 14:18 \*/public class EventDispatcher {
 /\*\* \* 单例模式 \*/ private static EventDispatcher eventDispatcher = new EventDispatcher();
 private EventDispatcher() {
 }
 /\*\* \* 分发事件 \* \* @param event \* @return \*/ public static boolean dispatchEvent(Event event) { if (CollectionUtils.isNotEmpty(EventListenerManager.getEventListenerList())) { for (EventListener eventListener : EventListenerManager.getEventListenerList()) { if (eventListener.supportEvent(event)) { eventListener.handlerEvent(event); } } } return true; }}


package com.example.ownertest.dm.event;
import java.util.List;
import com.google.common.collect.Lists;
/\*\* \* @Author: linear.zw \* @Date: 2023/11/1 14:18 \*/public class EventListenerManager {
 private static List<EventListener> eventListenerList = Lists.newArrayList();
 /\*\* \* 添加事件监听器 \* \* @param eventListener \* @return \*/ public static boolean addEventListener(EventListener eventListener) { if (!eventListenerList.contains(eventListener)) { return eventListenerList.add(eventListener); }
 return true; }
 /\*\* \* 移除事件监听器 \* \* @param eventListener \* @return \*/ public static boolean removeEventListener(EventListener eventListener) { if (eventListenerList.contains(eventListener)) { return eventListenerList.remove(eventListener); }
 return true; }
 public static List<EventListener> getEventListenerList() { return eventListenerList; }}

EventClient

package com.example.ownertest.dm.event;
/\*\* \* @Author: linear.zw \* @Date: 2023/11/1 14:19 \*/public class EventClient {
 public static void main(String[] args) {
 // 创建事件源 EventSource eventSourceForTest = new EventSourceForTest(); EventSource eventSourceForTest2 = new EventSourceForTest2();
 // 创建事件监听器 EventListener eventListener = new EventListenerForTest(); EventListenerManager.addEventListener(eventListener);
 // 发布事件 EventDispatcher.dispatchEvent(eventSourceForTest.fireEvent()); EventDispatcher.dispatchEvent(eventSourceForTest2.fireEvent());
 }}

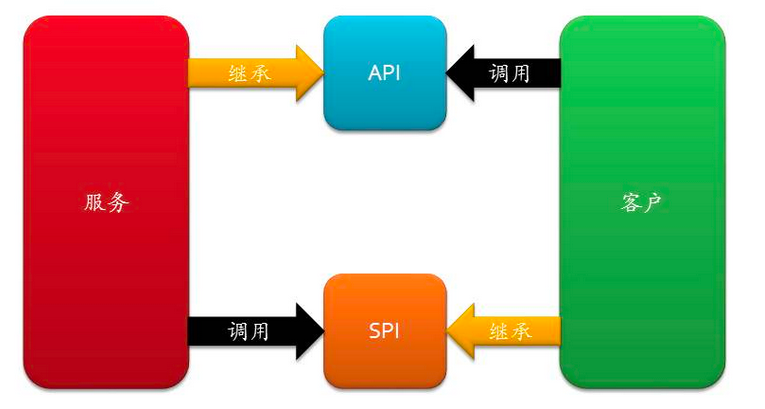

基于SPI机制的套路

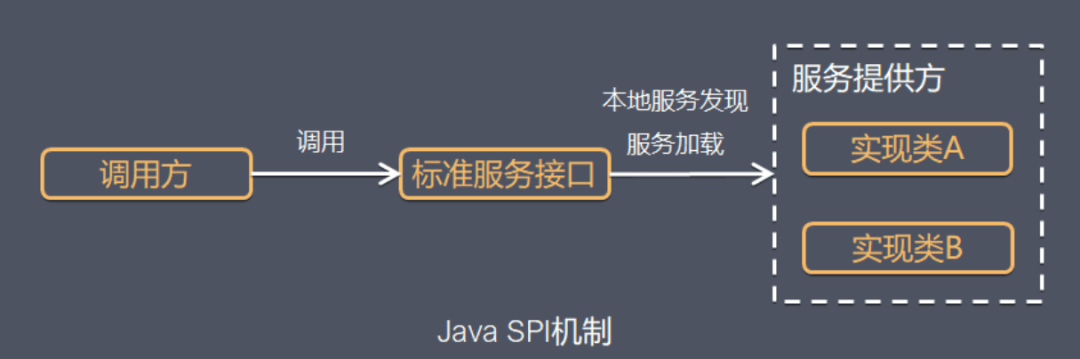

关键点

服务调用方

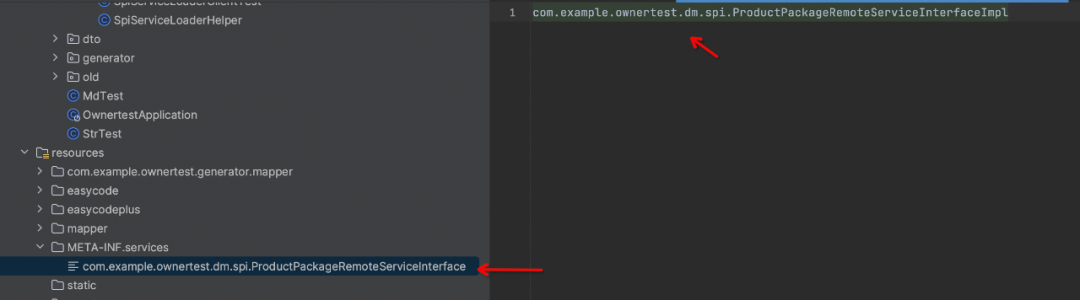

服务实现方----以接口名称为文件名称，放在META-INF/services，值为该接口的实现

标准服务接口

适用场景

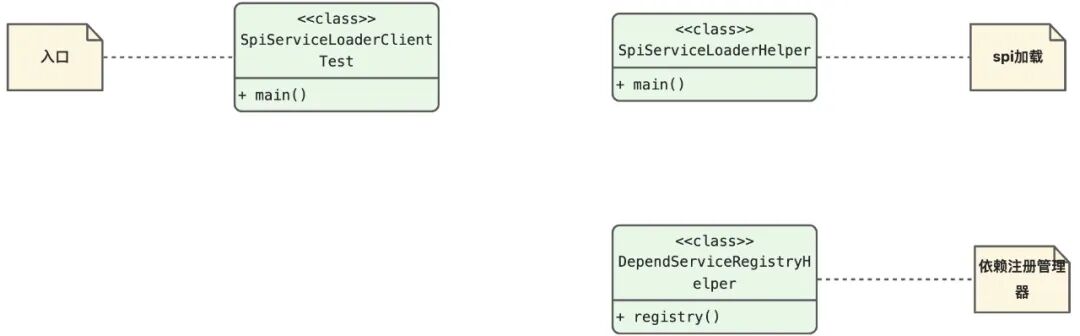

实现代码

SpiServiceLoaderHelper

package com.example.ownertest.dm.spi;
import java.util.Iterator;import java.util.Objects;import java.util.ServiceLoader;
/\*\* \* @Author: linear.zw \* @Date: 2023/11/1 15:32 \*/public class SpiServiceLoaderHelper {
 public static ProductPackageRemoteServiceInterface getProductPackageRemoteServiceInterface() { // 先从缓存中加载 Object serviceCache = DependServiceRegistryHelper.getDependObject(ProductPackageRemoteServiceInterface.class); if (serviceCache != null) { return (ProductPackageRemoteServiceInterface) serviceCache; } // spi 方式加载 ProductPackageRemoteServiceInterface serviceInterface = loadSpiImpl(ProductPackageRemoteServiceInterface.class); // 防止注入的bean为空 提前进行判断 以免业务执行出现问题 boolean isExist = true; if (Objects.isNull(serviceInterface)) { isExist = false; } else if (Objects.isNull(serviceInterface.getProductPackageRemoteService())) { isExist = false; } if (!isExist) { throw new RuntimeException("getProductPackageRemoteService load impl failed,please check spi service"); } // 添加进统一的依赖管理 DependServiceRegistryHelper.registry(ProductPackageRemoteServiceInterface.class, serviceInterface); return serviceInterface; }
 /\*\* \* 以spi的方式加载实现类 \* \* @param cls \* @param <P> \* @return \*/ private static <P> P loadSpiImpl(Class<P> cls) { ServiceLoader<P> spiLoader = ServiceLoader.load(cls); Iterator<P> iaIterator = spiLoader.iterator(); if (iaIterator.hasNext()) { return iaIterator.next(); } return null; }}

DependServiceRegistryHelper

package com.example.ownertest.dm.spi;
import java.util.Map;
import com.google.common.collect.Maps;
/\*\* \* @Author: linear.zw \* @Date: 2023/11/1 15:35 \*/public class DependServiceRegistryHelper {
 /\*\* \* 存储策略依赖的服务,统一管理 \*/ private static Map<String, Object> dependManagerMap = Maps.newHashMap();
 public static boolean registryMap(Map<Class, Object> dependManagerMap) { for (Map.Entry<Class, Object> dependEntry : dependManagerMap.entrySet()) { registry(dependEntry.getKey(), dependEntry.getValue()); } return true; }
 public static boolean registry(Class cls, Object dependObject) { dependManagerMap.put(cls.getCanonicalName(), dependObject); return true; }
 public static Object getDependObject(Class cls) {
 return dependManagerMap.get(cls.getCanonicalName()); }}

SpiServiceLoaderClientTest

package com.example.ownertest.dm.spi;
/\*\* \* @Author: linear.zw \* @Date: 2023/11/1 15:37 \*/public class SpiServiceLoaderClientTest {
 public static void main(String[] args) { ProductPackageRemoteServiceInterface productPackageRemoteServiceInterface = SpiServiceLoaderHelper.getProductPackageRemoteServiceInterface();
 }}

常见框架中的应用

目前大多数中台的策略包，都是基于spi方式的，动态加载业务的实现，进而达到扩展的目的；

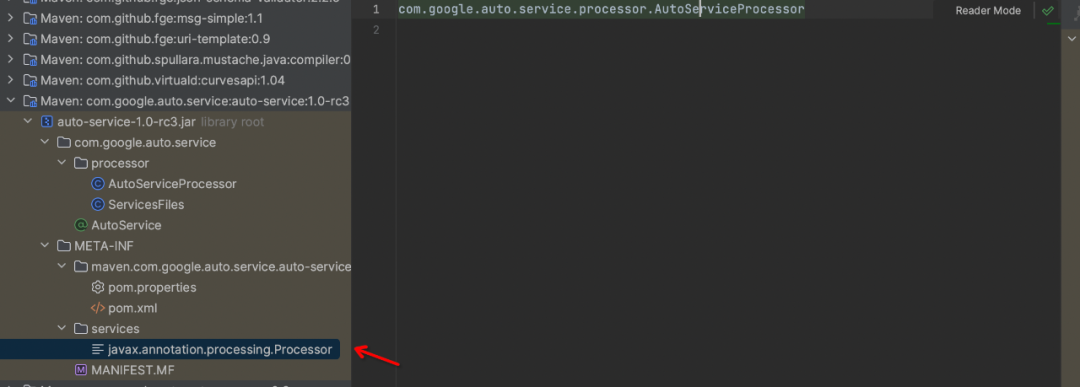

例如google开源的auto-service，通过注解的方式，自动生成spi的实现目录；

最后

程序员大多数都是实干派，所以，你的套路有哪些，评论区有你的位置，Show me the code。

欢迎加入【阿里云开发者公众号】读者群

这是一个专门面向“阿里云开发者”公众号的读者交流空间 💡 在这里你可以探讨技术和实践，我们也会定期发布群福利和活动～欢迎扫码或者添加微信：argentinaliu 加入我们👇

如果觉得文章对你有用，请随意赞赏

Java中保持扩展性的几种套路和实现

https://www.fengyege.top/archives/4a617661-zhong-bao-chi-kuo-zhan-xing-de-ji-zhong-tao-lu-he-shi-xian

作者

枫夜求索阁

发布于

2023-11-17

更新于

2023-11-17

许可协议

CC BY 4.0
